What Drawings Are Required for a Building Permit in Northern Virginia?

If you’re planning a construction project in Northern Virginia, one of the first questions that comes up is:

What drawings do I actually need for a building permit?

A lot of people assume a simple floor plan is enough. It’s not.

Counties require a full set of drawings that clearly explain what’s being built, how it’s built, and how it meets code.

If anything is missing or unclear, your permit application will be delayed.

_____________________________________________________________________________________________________

Why Drawings Are Required for Permits

Before approval, the county needs to verify that your project meets:

• zoning requirements

• building codes

• safety standards

They do this entirely through your drawings.

If the drawings don’t clearly show compliance, the project cannot move forward.

If you want a full breakdown of how these drawings fit into the approval process, see permit-ready architectural plans.

_____________________________________________________________________________________________________

The Main Drawings Required for a Building Permit

Most projects in Northern Virginia require a combination of the following:

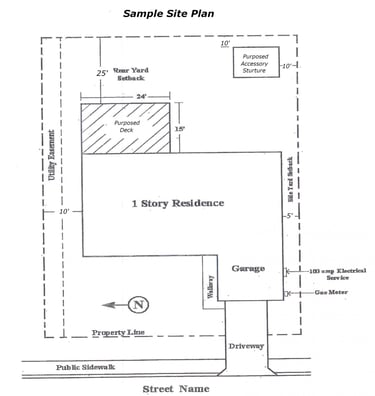

Site Plan

Shows:

• property lines

• setbacks

• structure location

This is used to verify zoning compliance.

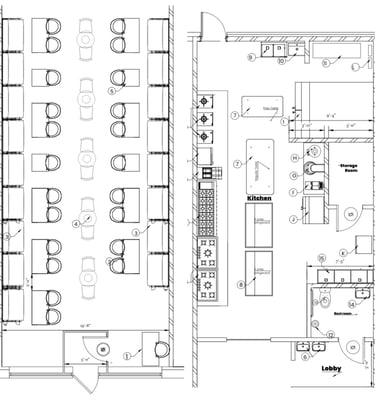

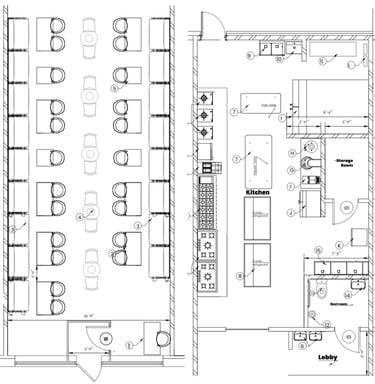

Floor Plans

Shows:

• layout and dimensions

• walls, doors, windows

• room configurations

This gives a clear view of how the space is organized.

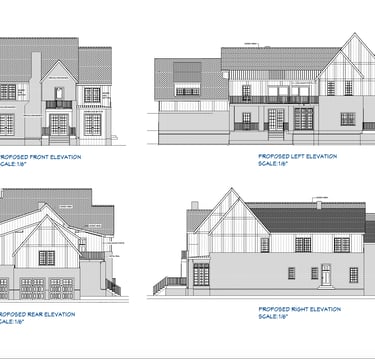

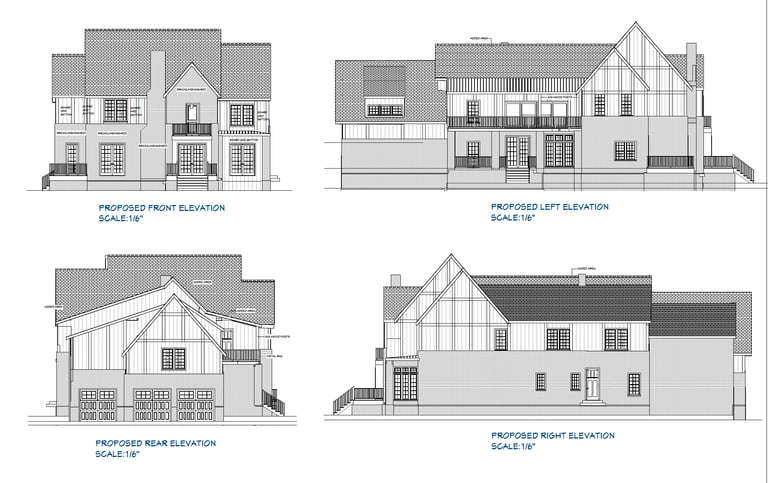

Elevation Drawings

Shows:

• exterior views

• building height

• rooflines

These are used to confirm height limits and design.

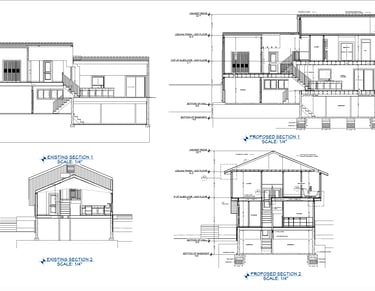

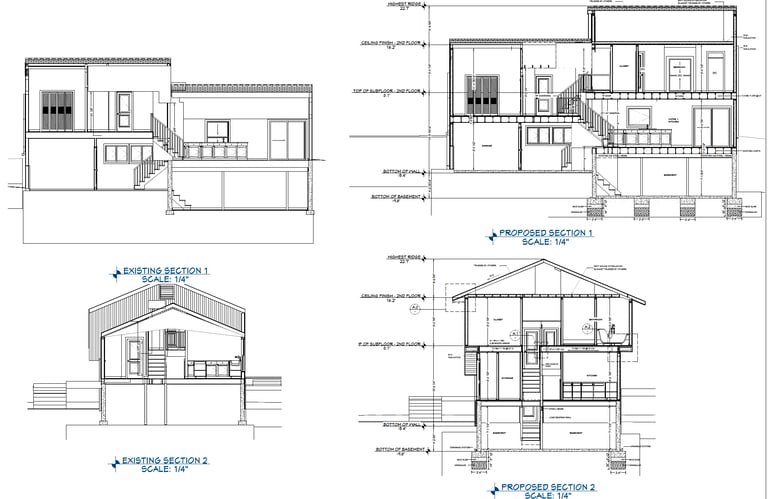

Section Drawings

Shows:

• cut-through views of the building

• vertical relationships

• construction details

These help explain how the structure is built.

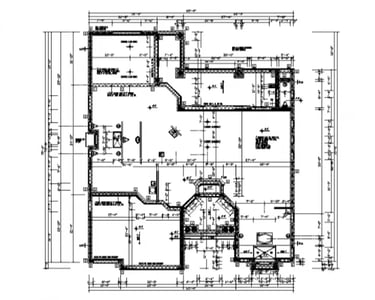

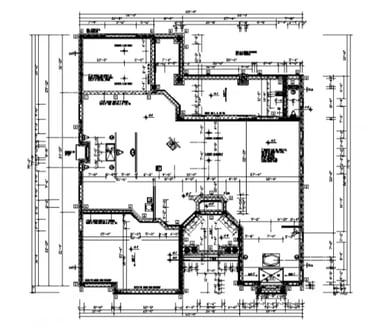

Structural Drawings (When Required)

Some projects require additional structural details, such as:

• framing plans

• beam sizes

• connection details

This is common for:

• decks

• additions

• larger renovations

If you’re not sure how these all come together, check out what is included in a permit plan set.

_____________________________________________________________________________________________________

When Additional Drawings Are Required

Depending on the project, counties may also require:

• grading plans

• drainage details

• energy compliance information

• mechanical, electrical, or plumbing drawings

Requirements vary based on:

• project size

• location

• type of construction

You can review general requirements through the Fairfax County Government building permit page.

_____________________________________________________________________________________________________

Why Missing Drawings Cause Delays

Most permit delays happen because something is missing.

Common issues:

• incomplete plan sets

• missing structural details

• unclear dimensions

• lack of coordination between drawings

Each missing piece results in comments and revisions.

If you want to understand how these issues slow projects down, read why permits get delayed in Northern Virginia.

_____________________________________________________________________________________________________

Residential vs Commercial Drawing Requirements

Residential

• fewer drawings required

• simpler scope

• faster approvals

Commercial

• more detailed documentation

• multiple disciplines

• stricter review process

The complexity increases significantly.

_____________________________________________________________________________________________________

How to Make Sure Your Drawings Get Approved

A few simple steps make a big difference:

• include all required drawings from the start

• keep everything consistent

• clearly label all dimensions and details

• address zoning early

• include structural details when needed

This reduces back-and-forth during review.

_____________________________________________________________________________________________________

Why Clear Drawings Matter

The county doesn’t see your project in person.

They only see your drawings.

Clear, complete drawings:

• reduce confusion

• speed up approvals

• prevent delays

If drawings are unclear, everything slows down.

If you want to understand how detailed drawings differ from basic plans, see permit drawings for building permits.

_____________________________________________________________________________________________________

Final Thoughts

Getting a building permit in Northern Virginia starts with having the right drawings.

The more complete and clear your drawings are, the smoother the approval process will be.

Missing or unclear drawings almost always lead to delays.
