Permit Drawings: What You Need for a Building Permit in the DMV

If you’re planning any type of construction project, one of the first requirements you’ll run into is permit drawings.

These are the drawings you submit to the county before you can start building.

A lot of people assume basic sketches or rough plans are enough. They’re not.

Permit drawings need to clearly show what’s being built and how it meets local code requirements. If they don’t, the county will send them back for revisions.

_____________________________________________________________________________________________________

What Are Permit Drawings?

Permit drawings are a set of detailed plans prepared specifically for permit approval.

They are reviewed by the county to confirm that your project meets:

• building codes

• zoning regulations

• safety requirements

These drawings are not just for construction crews. They are designed for reviewers first.

If you want a full overview of how these fit into the bigger process, see permit-ready architectural plans.

_____________________________________________________________________________________________________

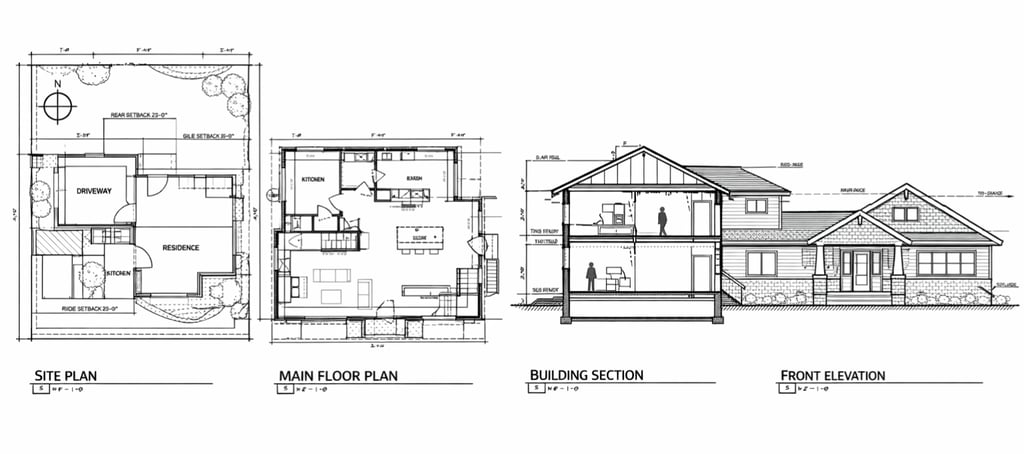

What Do Permit Drawings Typically Include?

Permit drawings usually include multiple sheets that work together to explain the project.

Site Plan

Shows:

• property lines

• setbacks

• structure location

This helps verify zoning compliance.

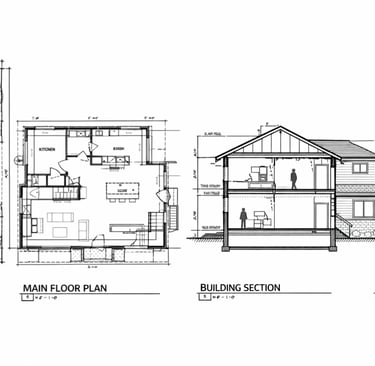

Floor Plans

Shows:

• layout and dimensions

• walls, doors, windows

• room configurations

Everything needs to be clearly labeled.

Elevations

Shows:

• exterior views

• building height

• materials

These are used to check height limits and design compliance.

Sections

Shows:

• how the building is constructed

• vertical relationships between spaces

These provide more technical clarity.

Structural Details

Depending on the project, this may include:

• framing details

• beam sizes

• connection details

This is especially important for decks, additions, and larger structures.

If you want a deeper breakdown of how these come together, see what is included in a permit plan set.

_____________________________________________________________________________________________________

Why Permit Drawings Get Rejected

Most rejections come down to a few common issues.

Missing Information

If required drawings or details are missing, reviewers cannot approve the plans.

Code Violations

Examples:

• setback violations

• height issues

• structural non-compliance

These must be addressed before approval.

Inconsistent Details

• dimensions don’t match

• drawings conflict

• unclear labeling

Even small inconsistencies slow down the process.

Unclear Scope of Work

Reviewers need to understand exactly what is being built.

If that isn’t clear, the plans will come back with comments.

If you want to understand how these issues cause delays, read why permits get delayed in Northern Virginia.

_____________________________________________________________________________________________________

The Role of the County in Reviewing Drawings

Once drawings are submitted, the county reviews them for compliance.

You can review general requirements through the Fairfax County Government building permit page.

_____________________________________________________________________________________________________

Residential vs Commercial Permit Drawings

Residential

• simpler scope

• fewer review layers

• faster approvals (if complete)

Commercial

• more detailed requirements

• multiple departments involved

• longer review process

The level of detail increases significantly.

_____________________________________________________________________________________________________

How to Prepare Permit Drawings That Get Approved Faster

A few things help avoid delays:

• include all required drawings from the start

• keep everything consistent

• address zoning early

• clearly define the scope

• include structural details when needed

The goal is to make it easy for reviewers to approve.

_____________________________________________________________________________________________________

Why Good Permit Drawings Matter

Permit drawings are what determine whether your project moves forward.

Clear, complete drawings:

• reduce revisions

• speed up approvals

• prevent delays

If they’re incomplete, everything slows down.

_____________________________________________________________________________________________________

Final Thoughts

Permit drawings are more than just paperwork.

They are the foundation of the approval process.

In the DMV area, where requirements are detailed, getting them right upfront makes a big difference.
